Beam characteristics are readily optimised for each application and of course the use of low energies minimises radiation protection requirements.

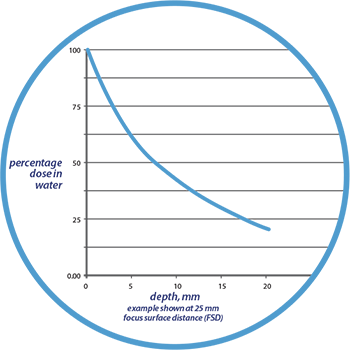

Classic Papillon depth dose curve (≥50% dose at 5mm)
Beam uniformity on a planar surface with the aid of a flattening filter.
50 kVp 0.5-0.8mm mm Al. HVL.
Applicators from 20 – 30 mm diameter are available.
Click the image to enlarge.
